1/2 Inch Datasheet 40# SS316L Random Packing Saddle I Rings

1. SS 316L Random Packing Saddle I Ring Advantage:

The metal saddle ring gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.

2. SS 316L Random Packing Saddle I Ring Options:

3. Stainless Steel Raschig Super Rings Advantage:

The super raschig ring is not only offered in a generally applicable standard type, but material and wall thickness can also be customized.

Its pressure drop of the dry packing is lower than that of 50mm metal pall rings.
It has substantially lower pressure drop than other high-performance packing, too.
The super raschig ring has a higher loading capacity than both metal pall rings and other random packing
Usually it is lighter than other packing types.
It is suitable for liquids contaminated with solids.

4.Metal Saddle Ring Packing Applications:

1.Rectification towers
2.Separation of organic acid
3.Absorbing tower
4.Desorbing tower
5.Acid Gas Removal
6.Atmospheric and high pressure distillation

5. Hualai's Capacity in Tower Packing:

In Hualai, we understand the importance of timeliness and quality for all plant operations. Hualai factory serves local, domestic and international partners all with the same strategic purpose - reliable quality, partnership attitude and attention to details.

Hualai metal tower packing product groups:

In Hualai factory, we produces and exports perforated corrugated metal plate structured packing, corrugated wire gauze packing, metal random packing like pall rings, intalox saddles, cascade mini ring, raschig ring, rosette ring, super raschig ring, inner arc ring, conjugate ring, mini ring, etc.. All these types of packing are available in carbon steel, stainless steel 304, 316L. Additionally, titanium, monel, copper and some other alloy materials are also available for some of the packing types, too.

Welcome your inquiry for more info!

1/2 inch metal random packing

ss316l metal random packing

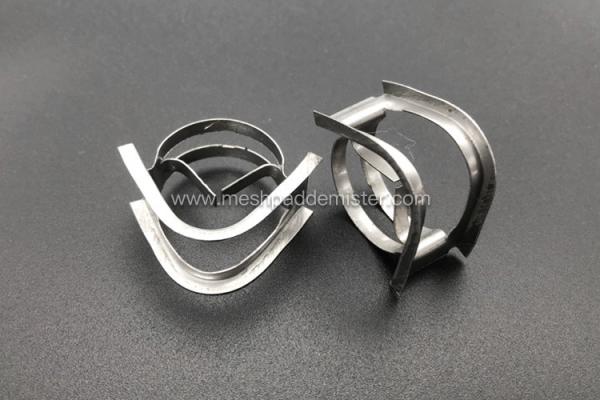

1/2 Inch Ss316l Metal Random Packing Saddle Rings Images
