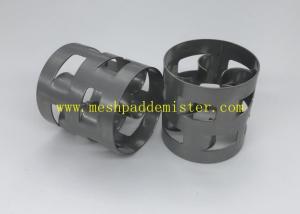

Random Odm Metal Pall Ring Packing 304 38 × 38 × 0.5 Mm In Stocks

  • 1
  • 2

Certification : ISO9001

Place of Origin : China

MOQ : 0.01 cubic meters

Price : negociation

Payment Terms : T/T

Supply Ability : 99 cubic meters per month

Delivery Time : 5-9 days

Packaging Details : carton, bag, pallet

Product name : metal random packing pall ring

Size : 1.5 in / 38 mm

Wall thickness : 0.5 mm

Sample : free sample

Material : SS304

Material certificate : Yes

Application : distillation tower packing

data sheet : available

OEM : Yes

Warranty : lifetime online service

Contact Now

Metal Random Packing 304 Pall Ring 38 × 38 × 0.5 mm in stocks

1. Metal Random Packing Pall Ring Basic Info:

Tower packing φ 38 stainless steel pall ring label: tower packing, φ 38 pall ring, stainless steel pall ring, carbon dioxide degassing tower packing

Tower packing φ 38 stainless steel pall ring introduction: the stainless steel pall ring is modified on the basis of raschig ring, with the design of opening and inner tongue added. The positions of upper and lower windows are staggered. Generally, the area of the window is about 30% of the area of the whole ring. The window on the ring wall makes the distribution and mass transfer efficiency of liquid and gas in the package better than that of raschig ring.

2. 38 mm Metal Pall Ring Random Packing Specification:

Size

Dia.*Height (mm)

Thickness

mm

Pack No.

(m3)

Pack Density

(kg/m3)

Specific Area (m2/m3)

Void Volume

%

Dry Packing Factor
16*16 0.3 214000 396 362 94.9 423
25*25 0.4 51940 393 219 95.0 255
38*38 0.5 15180 318 146 95.9 165
50*50 0.8 6500 314 109 96.0 124
76*76 1.2 1830 308 71 96.1 80

3. Pall ring packing application

It is applicable to various separation, absorption and desorption devices, atmospheric and vacuum units, synthetic ammonia decarbonization and desulfurization systems, ethyl benzene separation, isooctane / methyl benzene separation, etc.

Pall ring packing has the advantages of large flux, low resistance, high separation efficiency and large operation flexibility. Under the same pressure reduction, the treatment capacity can be more than 50% larger than that of raschig ring. At the same treatment capacity, the pressure drop can be reduced by half and the mass transfer efficiency can be increased by about 20%. Compared with raschig ring, this kind of packing has the characteristics of large production capacity, small resistance and large operating flexibility. In general, when the pressure drop is the same, it can treat 50% - 100% more than raschig ring, and when the capacity is the same, its pressure drop can be 50% - 70% lower than raschig ring. Pall ring can also help reduce the tower height. Using Pall ring can save 20% - 40% of packing volume than raschig ring.

4. Metal Pall Ring Random Packing Features:

Tower packing φ 38 stainless steel pall ring features:

smaller airflow resistance,

more uniform liquid distribution,

high mass transfer efficiency and large gas flux

Tower packing Application scope of φ38 stainless steel pall ring: it provides gas-liquid distribution and transmission efficiency. It is suitable for carbon dioxide degassing tower, ozone contact reaction tower, etc. as contact packing and other reaction towers.

5. Metal Pall Ring Production & Shipment

Random Odm Metal Pall Ring Packing 304 38 × 38 × 0.5 Mm In Stocks
Random Odm Metal Pall Ring Packing 304 38 × 38 × 0.5 Mm In Stocks
Welcome your inquiry with any questions!
