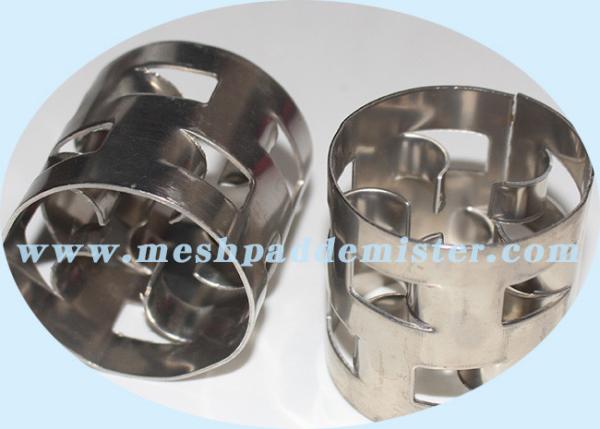

2 inch metal random packing 50 mm pall ring 1 mm thickness
2 inch metal random packing advantages:
Pall ring has the advantages of high flux, low resistance, high separation efficiency and high operation flexibility. Under the same depressurization, the treatment capacity of pall ring can be 50% larger than that of raschig ring. At the same treatment capacity, the pressure drop can be reduced by half and the mass transfer efficiency can be increased by about 20%. Compared with raschig ring, this kind of random packing has the characteristics of large production capacity, small resistance and large operation flexibility. Under normal circumstances, the treatment of the same pressure drop can be 50% - 100% larger than that of raschig ring, and the tower height is 50% - 70% lower than that of raschig ring, and the packing volume can be saved by 20% - 40% by using pall ring.
2 inch metal random packing data sheet:
| Type | Specific area m2/m3 | Void % | Packing No. /m3 | Weight kg/m3 | Dry packing factor m-1 |
| 3 inch | 96 | 96.0 | 1930 | 137~219 | 114 |
| 2 inch | 112 | 94.0 | 6500 | 200-318 | 131 |
| 1 1/2 inch | 129 | 94.0 | 13000 | 210-421 | 153 |
| 1 inch | 219 | 93.0 | 55900 | 240-320 | 269 |
| 5/8 inch | 239 | 93.0 | 143000 | 371-495 | 299 |
2 inch metal random packing pall ring VS raschig ring:
The pall ring is an improvement of the raschig ring. The difference for the Pall Ring is the addition of two rows of punched and formed fingers. This adjustment provides a significant performance increase: the capacity and efficiency is improved and the pressure drop is reduced.
2 inch metal random packing application:
Degassing; Gas washing; Steam stripping; Air pollution control scrubbers; H2S, NH3 & SO2 absorption and stripping

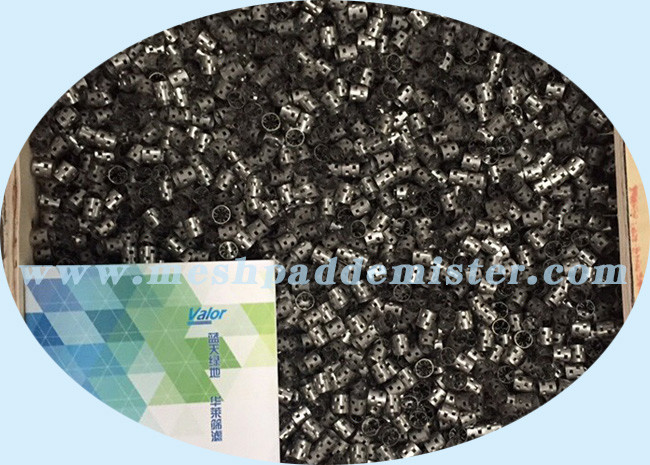

2 inch metal random packing in Hualai factory:
In Hualai, we know well about metal pall rings. We have inventory of various types and materials to ensure fast delivery, especially for those who need small quantity of pall rings for test or pilot devices.
Welcome your inquiry with any questions!
