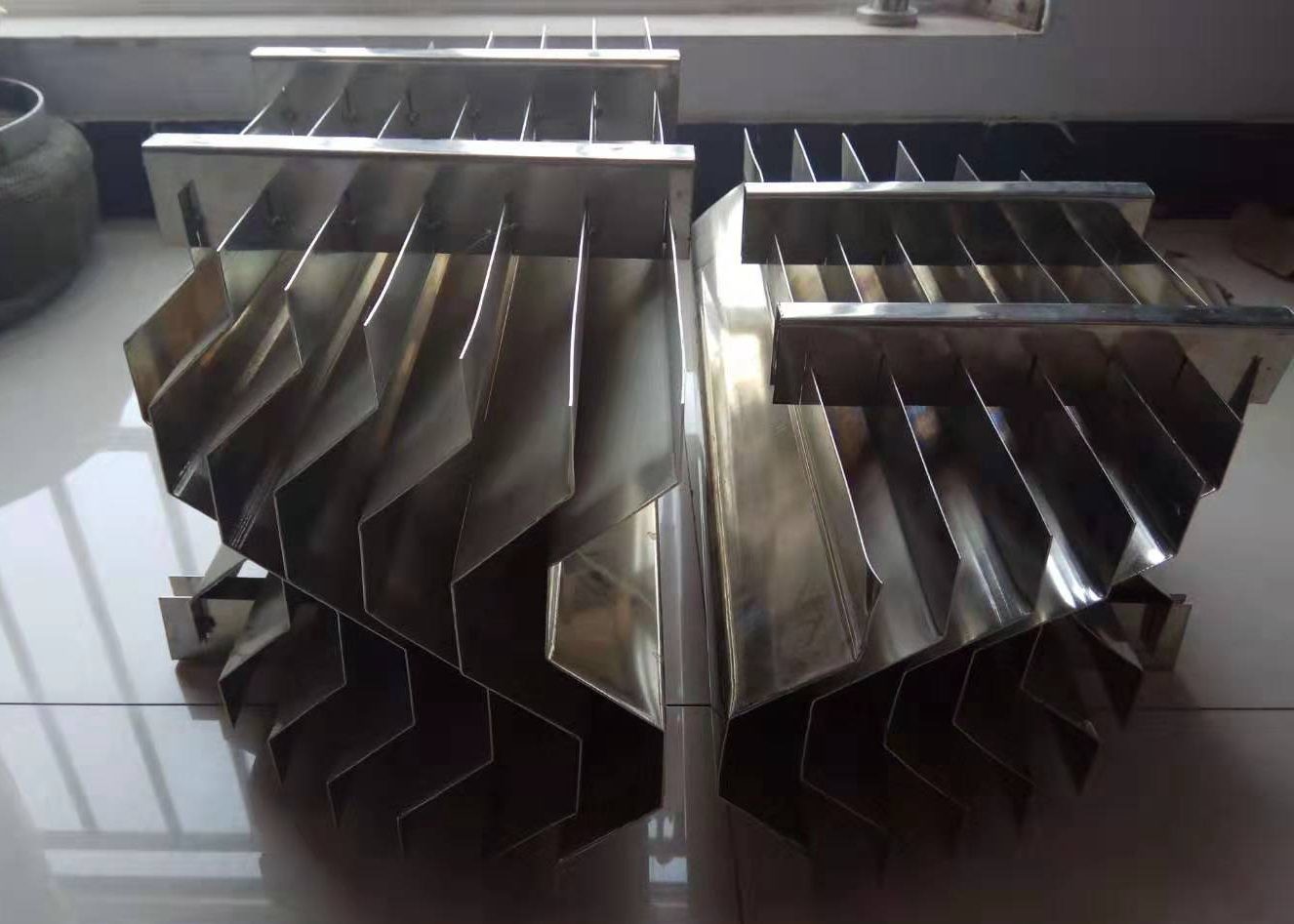

SS304 corrugated plate vane pack mist eliminator 170mm net height
When the gas containing the mist flows through the vane pack demister at a certain speed, due to the inertial impact of the gas, the mist and the wave plate collide and are attached to the wave plate surface. The diffusion of the mist on the surface of the corrugated plate and the gravity settlement of the mist cause the mist to form large droplets and move forward with the air flow to the turning of the corrugated plate. Because of the centrifugal force of the steering and its friction with the corrugated plate, the adsorption and the surface tension of the liquid, the droplets become larger and larger until the concentrated droplets are dragged by big enough gravity generated by themselves, which exceeds the lifting force of the gas and the surface tension of the liquid. When the force is applied, the droplets are separated from the surface of the vane plate. The multi fold structure of the wave plate of the mist eliminator increases the chance of catching and gathering the mist, and the uneliminated mist will catch and gather at the next turn through the same function, so it will work repeatedly, thus greatly improving the efficiency of mist eliminator. After the gas passes through the wave plate demister, there is basically no mist.
The stainless steel baffle demister is widely used in gas-liquid separation devices in chemical, petroleum, sulfuric acid, medicine, light industry, metallurgy, machinery, environmental protection, tower manufacturing, pressure vessel and other industries.
A method to estimate weight of stainless steel vane pack demister
| Type | corrugated plate height /mm | total demister height /mm | orignal plate width /mm | frame size /mm | Pitch of vane |
| 2 pass | 170 | 200 | 200 | H:40*W:20 | 20mm, 25mm, 30mm or as per order |
| 3 pass | 230 | 250 | 280 | H:40*W:20 |
For example, if the required plate distance is 25mm, it takes about 37 pcs of 1m length corrugated plates and necessary frames to build a 1m*1m chevron mist eliminator. Then the mist eliminator unit weight =37*single plate weight+frame weight (properly estimated).
In fact, I have in mind a idea that we can also try to add some hooks to this stainless steel corrugated vane plates, to help the mist eliminator gain higher efficiency. Obviously it will increase the material and labor cost somehow. We are happy to take a try to fulfill your higher requirements.
Welcome your contact any time! We are ready to be helpful!
