1000mm Diameter Layer Height 200mm 450Y Distillation Packing

1000mm Diameter Layer Height 200mm 450Y Distillation Packing


1. 450Y Distillation Packing from Factory

450Y corrugated perforated packing is custom made as per client requirements, which is less popular than other types, but no problem for factory.

Each type of structured packing has specific performance characteristics. Under certain conditions or in specific applications, each provides a particular benefit that may make one style more desirable than another.
structured packing has been in the market for several years and offers increased capacity compared to trays and conventional random packings.

2. Distillation Packing Features:

structured packing uses the industry standard corrugated perforated and embossed sheet metal design to provide efficient vapour-liquid contact. The style of the embossed surface has been optimised to provide maximum wetability and numerous perforations enhance cross mixing of the process fluids. Type Y has a crimp angle of 45° and type X 30°. Suitable liquid irrigation range from below 0.5 up to 200 m3/m2.hr.

3. Distillation Packing Datasheet:

Resulting from these valuable experiences, we have produced range of structured packings suitable for engineering systems that provide optimum column performance. As a general rule, new columns should be sized to operate at 80% of capacity at the maximum design loading.

4. Distillation Packing Advantage:

For improved performance in new and existing towers. The uniform arrangement of structured packing provides many advantages compared to random packing or fractionation trays. Using structured packing can provide:
Higher capacity
Reduced liquid hold-up
Excellent liquid spreading characteristics
Lower pressure drop through the column
Higher efficiency in the same tower height



5. Distillation Packing Summary:

The metal structured packing includes pore plate corrugated packing, plate mesh corrugated packing, piercing hole plate corrugated packing, mesh corrugated packing and annular corrugated packing.
Orifice plate corrugated packing is a regular packing which is assembled by holes and large ripples on the surface of metal sheet. It has the characteristics of small resistance, uniform gas-liquid distribution, high efficiency, large flux and unobvious amplification effect. It is used in negative pressure, normal pressure and pressure operation.

Welcome your inquiry about structured packing any time!

structure packing in distillation

structured tower packing

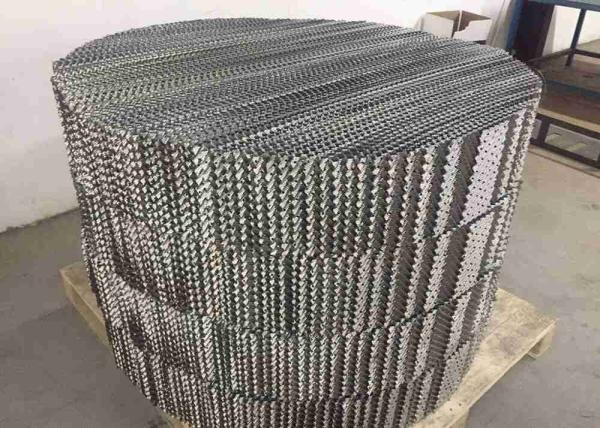

1000mm Diameter Layer Height 200mm 450Y Distillation Packing Images
